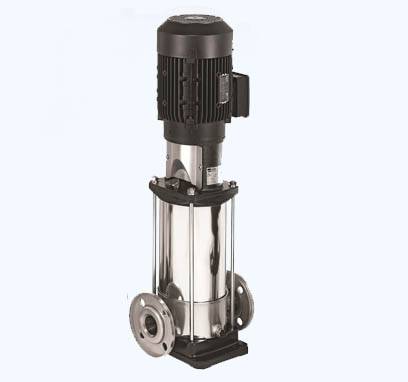

Introducing the EVMS 1 (N) part of the new range of vertical multistage pumps from Ebara named ‘EVMS’.

The pump range has infinite combinations in many sizes to meet various customer demands. The EVMS pump contains innovative hydraulic features, including energy saving IE3 electric motors and the newly designed ‘Shurricane’ Impellor for a greater efficiency and increased service life.  A cartridge shaft seal makes any replacement quick and easy, please take a look at the video.

The EVMS 1 (N) specifications

• Impellor and Pump body: AISI 304
• Capacity up to 2.4m3/h (10 l/min)
• Total Head up to 219 m
• Working Pressure Max 16 bar (Oval Flange), Max 25 bar (Round Flange)
• Mechanical Seal: SiC/Carbon EPDM (E)
• Voltage 230/400v, up to 4kW
• Liquid temperature range from -30^oC to 120^oC (Q1BEG) and -30^oC to 140^oC (HQ1BEG)
• Frequency 50Hz
• Insulation class F
• IP55 Protection

The team at Peel Pumps have years of experience in the pump industry, if you therefore cannot find what you are looking for or you require some technical assistance then please do not hesitate to contact a member of our helpful team on 01706 558 352. Alternatively you can email us on sales@peelpumps.co.uk. We will endeavour to respond to you as quickly as possible.
