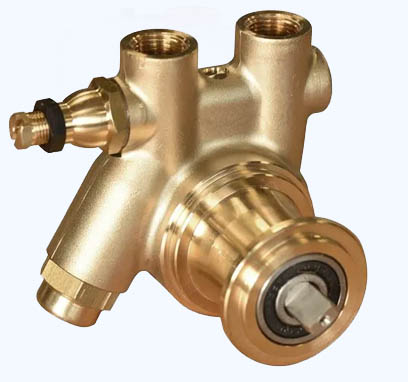

BRASS PROCON PUMP

Brass Pump Head

The Rotary Vane Pumps are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.

Technical features and manufacturing characteristics

The rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8" NPT/GAS threaded. The pump is designed to directly mount to the motor with a stainless steel clamp. For different mounting arrangements, see our technical info “optional mountings”. Maximum operative temperature: 70 °C (158 °F).


  • Description
  • Features
  • Applications
  • WTS GUARANTEES STOCK of this popular Series 1 pump.
  • WTS also offers the Series 1 pump configured across the full range of flow rates, pressure settings. & drive coupling configurations.
  • WTS stock a variety of economy & OEM drive motors from 160W to 375W 115/230V 50/60Hz
  • Prices on application. Discounts available for multiple orders. Contact us for more details.
  • Pump Body: Brass
  • Port Size: 3/8″ NPT
  • Flow Rate: 5.0 litres/min (50Hz. 1400 RPM)
  • Pressure Setting: Relief valve set @ 13.5bar (200psi)
  • Elastomer Type: FDA Nitrile Seal . Type21/2106
  • Relief valve: Integrated. Hi-temp. Balanced/Adjustable
  • Fluid strainer: Integral strainer. #100 Steel mesh
  • Motor mounting: Clamp-on Type. V-band clamp Included
  • Drive configuration: Type A coupling. Male. DF Drive. S/Steel shaft
  • Rotation: Clockwise
    • Beverage vending machines
    • Post-mix drink dispensers
    • Espresso coffee machines
    • Cooling systems
    • Reverse osmosis
    • Ultra-filtration
    • Water dispensers
